Sheet Metal Allowance: How much sheet metal you need to make curved parts

In this article, we are discussing the sheet metal allowance needed for a sheet metal part and application.

When engineers are needed to make bent or curved pieces of sheet metal, they use thumb rules, company written tables, and guesstimates to determine the length of straight stock needed for bending into a precisely measures curved part.

But what if these methods are unavailable to some engineers? Even if they were, the required stock length depends on material thickness, end radius, and bending angle, but also on the specific material being used.

Fortunately, there is a series of equations that are valid for all materials which can calculate bend length and bend allowance.

If the material’s strength and ductility are known, the equations can be used directly. If not, they can be used with data from a simple test bend to determine material properties and then applied to the bend at hand.

Read, Design and Fabrication of Bending Machine

How to find bend length:

Sheet metal allowance needs to be calculated in order to get the proper size of the sheet for further operations.
If the material bends with the neutral plane in the exact center of the sheet, bending length (BL) can be calculated from
BL = (πθ/180)(R+0.5T)

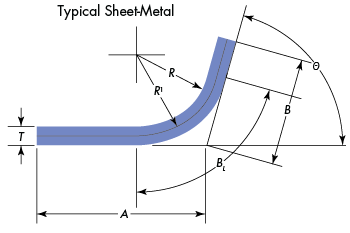

Sheet metal allowance
The bend allowance (Ba) for outside measurements A and B is related to bend length (BL) by
Ba = (θ/90)(2(R+T)-BL)
However, when the material undergoes plastic deformation, as they do in bending operations, the neutral plane does not remain at the center of the sheet. Under these conditions, bend length can be found out from this equation
BL = (πθ/180)(R+C*0.5T)
where C is related to the material’s ductility.
One indication of ductility is K, the ratio of material’s yield strength to its tensile strength. Low ductility materials have K ratios approaching 1, while highly ductile materials have K ratio much less than 1. Applying linear regression with the bend length equation yields the following equation for C
C =0.668+0.326K2 .
Because sheet metals vary from batch to batch, values of K and C are best determined from test bending a material sample and computing new values rather than relying on previously established data. Both K and C are the properties of the material rather than geometry, so the best bend can be made on a sample of any convenient thickness and at any convenient radius.
Using the above equations and data from test bend, K2 can be found out from equation 2
K2 =((2(R+T)tan(θ/2)- Ba)(180/πθ)-R)((1/T)-0.334)(1/0.163)
Nomenclature :
A = straight-line dimension on one side of the bend
B = straight-line dimension on the other side of the bend
BL = bend length
Ba = bend allowance
C = ductility constant
K = ratio of yield strength to tensile strength
L = straight-line length of the piece before bending
R = bend radius measure on the inner surface
T = material thickness
θ = bend angle
